GFEVF750高速熔斷器（35A-800A)700V750Vdc

[附件: Download]

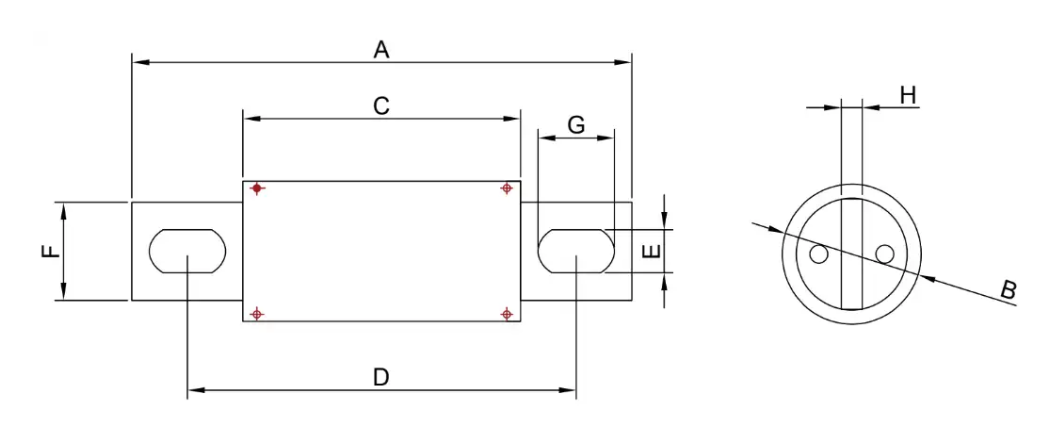

Dimensions (mm)

S.	Amps	A±1.5	B±1	C±1	D±1.5	E±0.5	F±0.5	H±0.5	G±0.5
20R	35-60A	111.00	20.00	70.00	90.50	8.50	15.00	3.00	13.0
26R	70-150A	114.00	26.00	66.00	90.00	8.50	20.00	3.00	12.0
38R	125-400A	129.00	38.00	72.00	100.50	10.50	25.00	6.00	20.0
51R	225-800A	129.00	51.00	72.00	100.50	10.50	40.00	6.00	20.0

Description

Design For Dc Applications
Excellent Dc Performance
Low arc voltage and low energy let-through (I2t)
Superior cycling capability
Low Watt Losses

Standards / Approvals:

Refer To UL248.13 or IEC60269.4
Approvals: CE
RoHS Compliant

Features & Benefits:

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Can be applied in parallel to realize greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Rated Current		Catalog no.	Average @50KA/750Vdc		Power Loss W	Approvals
Rated Current		Catalog no.	Melting A2S	Clearing A2S	Power Loss W	ROHS
20 mm diameter case
35	35A	GFEVF750-35A-20R	45	205	14	●
40	40A	GFEVF750-40A-20R	92	360	15	●
50	50A	GFEVF750-50A-20R	192	735	19	●
60	60A	GFEVF750-60A-20R	290	1130	20	●
26 mm diameter case
70	70A	GFEVF750-70A-26R	370	2100	22	●
80	80A	GFEVF750-80A-26R	410	2520	25	●
90	90A	GFEVF750-90A-26R	560	3040	29	●
100	100A	GFEVF750-100A-26R	720	4500	32	●
125	125A	GFEVF750-125A-26R	1850	9075	35	●
150	150A	GFEVF750-150A-26R	2050	12375	42	●
38 mm diameter case
125	125A	GFEVF750-125A-38R	1720	8250	32	●
150	150A	GFEVF750-150A-38R	1850	11250	40	●
175	175A	GFEVF750-175A-38R	4326	17535	45	●
200	200A	GFEVF750-200A-38R	5665	22660	48	●
225	225A	GFEVF750-225A-38R	8180	33365	58	●
250	250A	GFEVF750-250A-38R	11031	45176	67	●
300	300A	GFEVF750-300A-38R	18491	75683	83	●
350	350A	GFEVF750-350A-38R	24899	100733	98	●
400	400A	GFEVF750-400A-38R	32569	131000	115	●
51 mm diameter case
225	225A	GFEVF750-225A-51R	8020	32330	52	●
250	250A	GFEVF750-250A-51R	10815	43775	60	●
275	275A	GFEVF750-275A-51R	14100	52390	70	●
300	300A	GFEVF750-300A-51R	18128	73336	75	●
350	350A	GFEVF750-350A-51R	24411	98468	88	●
400	400A	GFEVF750-400A-51R	31930	128750	105	●
450	450A	GFEVF750-450A-51R	37492	141110	120	●
500	500A	GFEVF750-500A-51R	46556	175100	135	●
550	550A	GFEVF750-550A-51R	53045	199206	142	●
600	600A	GFEVF750-600A-51R	68701	257500	150	●
630	630A	GFEVF750-630A-51R	69340	285500	160	●
700	700A	GFEVF750-700A-51R	76500	347600	170	●
800	800A	GFEVF750-800A-51R	93560	415000	205	●
