GFPVT1500-10RS光伏熔斷器（10x65)DC1500V

[附件: Download]

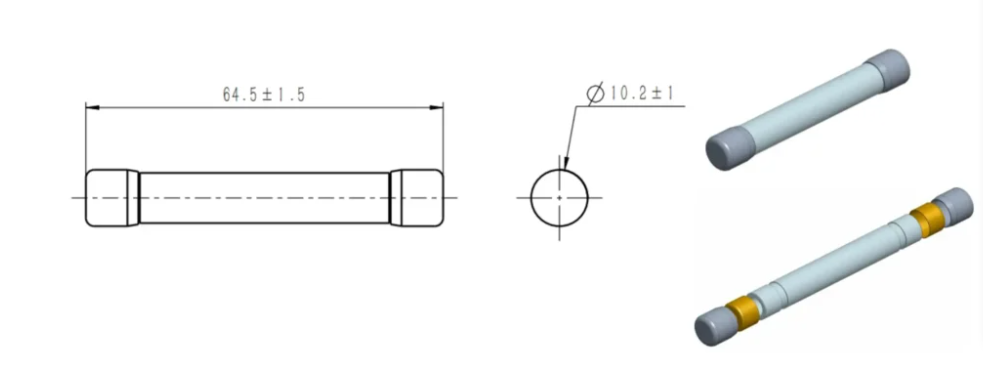

Dimensions (mm)

Description

Low I2t value (low let-through energy)
Strong current limiting capability
Low voltage drop
Excellent DC performance

Standards & Approvals

Refer to UL-248-19 / IEC 60269-1/6
Reach declaration available upon request
RoHS compliant

Features & Benefits

The GFPVT1500-10RS solar fuse is designed to integrate into an in-line assembly within a wire harness
Provides photovoltaic (PV) protection meeting UL 248-19 for photovoltaic applications
Can be electrically insulated by either over-molding or using heat-shrink
Meets IEC 60269-6 electrical performance requirements

Product Characteristics

Item	Test Condition/Methods	Standard	Performance
Time/Current	100% of current rating	IEC 60269/UL248-19	No Fusing；4 hours Min.
	113% of current rating *IEC	IEC 60269	60 Minutes Min.
	145% of current rating *IEC	IEC 60269	60 Minutes Max.
	105% of current rating *UL	UL-248.19	60 Minutes Min.
	135% of current rating *UL	UL-248.19	60 Minutes Max.
	200% of current rating	IEC 60269/UL248-19;1-30A	4 Minutes Max.
	200% of current rating	IEC 60269/UL248-19;31-60A	6 Minutes Max.
Endurance Test	100% of rating current for 4 hours and testing Temperature rise at the last 5min.	IEC 60269-6 UL248-19	≤65K

Loading 100% Rated Current (1.0In A) for flowing, and it’s available to let current keep on flowing at least 4 hour without any melting.

Fuse Ratings

Part No.	Fuse Amps	Average @30KA/1500Vdc		Power Loss (W)		Approvals
Part No.	Fuse Amps	A2s Melting	A2s Clearing	80%	100%	UL	TUV
GFPVT1500-10A-10RS	10	342	890	2	3	○ Pending	○ Pending
GFPVT1500-15A-10RS	15	550	1230	2.8	3.5	○ Pending	○ Pending
GFPVT1500-20A-10RS	20	660	1450	3.2	5.5	○ Pending	○ Pending
GFPVT1500-25A-10RS	25	885	1850	3.3	6	○ Pending	○ Pending
GFPVT1500-30A-10RS	30	790	2750	3.8	6.8	○ Pending	○ Pending
GFPVT1500-32A-10RS	32	1040	3550	4.2	8	○ Pending	○ Pending

DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃；
